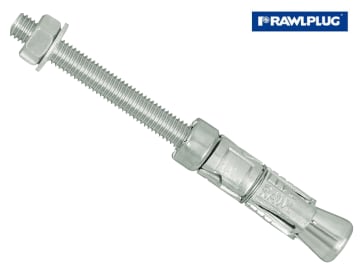

Rawlbolt® Projecting Bolt

The Rawlplug Rawlbolt® Projecting Bolt is suitable for use in cracked and non-cracked concrete (ETA option 1), hollowcore slabs, flooring blocks and ceramics. Recommended for applications requiring fire resistance.

With a three-piece expanding sleeve of maximum expansion to provide optimal load and safety of use in any substrate.

The world's most popular all-purpose expanding shield anchor, loose bolt projecting version.

These Rawlplug Rawlbolt® Projecting Bolts have the following specification:

Size x Max. Fixture Thickness: M10 x 30mm
Overall Length: 105mm
Drill Ø: 11mm
Pack Quantity: Bag of 5

Technical Specs

Size x Max. Fixture Thickness: M10 x 30mm
Overall Length: 105mm
Drill Ø: 11mm
Pack Quantity: Bag of 5

Price is for individual model shown.
RAWM1030PB: £12.46

View ModelsThis product has various models available. All buy buttons, comparisons and prices are listed below. Scroll down or use the button to jump there.

Code: RAWM1030PB
Stock: Will be despatched next working day

Box Content

1 x Rawlplug Rawlbolt® Projecting Bolt M10/30P (Bag of 5)

Other Products within the Group

Name	Size x Max. Fixing	Drill Ø	Pack Qty.	Price
Rawlbolt® Projecting Bolt M6/10P (Bag 5) RAWM610PB Rawlplug	M6 x 10mm	6.5mm	5	£10.25
Rawlbolt® Projecting Bolt M8/25P (Bag 5) RAWM825PB Rawlplug	M8 x 25mm	9mm	5	£9.77
Rawlbolt® Projecting Bolt M8/60P (Bag 5) RAWM860PB Rawlplug	M8 x 60mm	9mm	5	£10.92
Rawlbolt® Projecting Bolt M10/15P (Bag 5) RAWM1015PB Rawlplug	M10 x 15mm	11mm	5	£11.92
Rawlbolt® Projecting Bolt M10/30P (Bag 5) RAWM1030PB Rawlplug	M10 x 30mm	11mm	5	£12.46
Rawlbolt® Projecting Bolt M10/60P (Bag 5) RAWM1060PB Rawlplug	M10 x 60mm	11mm	5	£13.85
Rawlbolt® Projecting Bolt M12/30P (Bag 5) RAWM1230PB Rawlplug	M12 x 30mm	13mm	5	£21.52
Rawlbolt® Projecting Bolt M12/75P (Bag 5) RAWM1275PB Rawlplug	M12 x 75mm	13mm	5	£24.79
